DCK Tools 20V MAX

DCK Tools 20V MAX is DCK’s cordless power tool platform developed for trade and professional applications. The system combines a broad range of cordless tools with 20V MAX lithium-ion batteries, giving users the possibility to build a tool setup around one battery platform rather than selecting a separate power source for every machine. DCK states that its 20V MAX battery range covers capacities from 2.0Ah to 12.0Ah, allowing battery capacity to be matched to different working conditions and tool requirements.

The DCK 20V MAX range covers several important power-tool categories. The manufacturer’s current catalogue includes drill drivers, hammer drills, impact drivers, impact wrenches, rotary hammers, angle grinders, polishers, blowers, cleaning equipment, dust extraction products and cordless tool kits, with additional 20V MAX products available across specialist applications.

A common battery platform is particularly useful when several cordless tools are required on the same jobsite or in the same workshop. Once suitable batteries and chargers are available, additional compatible tools can be selected according to the task. However, specifications vary significantly between DCK 20V MAX models. Torque, speed, impact rate, drilling or cutting capacity, accessory dimensions, tool weight and package contents should therefore always be checked for the individual product rather than assumed from the platform name alone.

DCK 20V MAX battery platform

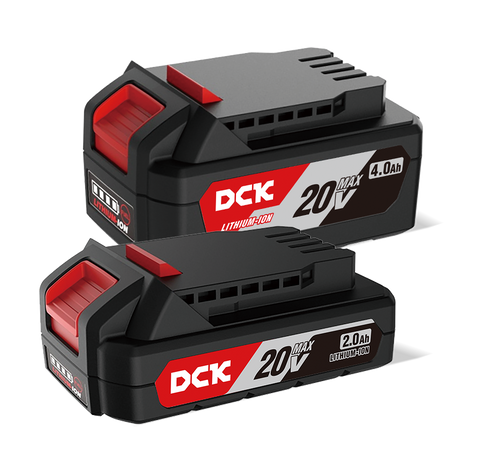

The battery is one of the most important components when choosing a cordless tool system. DCK offers 20V MAX lithium-ion batteries from 2.0Ah up to 12.0Ah across the platform. Different battery capacities allow users to balance operating time, weight and the demands of the application.

A smaller-capacity battery can be practical for compact tools or work where low overall weight and easy handling are priorities. Higher-capacity batteries can be more appropriate where extended operating time or demanding applications are important. The appropriate battery should always be selected according to the tool, work conditions and manufacturer recommendations.

DCK also highlights construction features on its 20V MAX battery system such as battery-slide connection, a battery indicator, reinforced protection around the terminals and internal measures intended to protect the battery pack from dust, vibration and external impact. These details refer to the manufacturer’s specified battery design and should not be treated as specifications of every tool in the platform.

What tools are part of the DCK 20V MAX system?

The DCK 20V MAX platform covers multiple product groups for different construction, installation, workshop and maintenance tasks.

Drilling and fastening is one of the largest areas of the platform. The manufacturer lists cordless drill drivers, hammer drill/drivers, impact drivers, impact wrenches and rotary hammers. The current drilling and fastening catalogue includes numerous individual models, allowing users to select different levels of torque, drilling capacity and tool configuration according to the application.

Grinding, sanding and polishing equipment includes cordless angle grinders and polishers. These tools remove the need for a mains cable at the point of use, but the appropriate model still needs to be chosen according to disc size, speed, material and intended task.

The broader platform also includes blowers, cleaning equipment and dust extraction products, as well as multi-tool combination kits containing several cordless machines and battery-system components.

Who are these products for?

DCK describes the 20V MAX platform as being developed for trade usage and professional users.

Depending on the selected tool, the system can be relevant for:

• construction and installation professionals;
• carpenters and interior fitters;
• mechanical and maintenance technicians;
• workshop users;
• building and property maintenance teams;
• users who regularly drill, fasten, grind, cut or perform repair work;
• businesses wanting to standardise several cordless tools around one 20V MAX platform.

Private users can also select DCK 20V MAX tools where the specifications and application suit their requirements. Professional suitability should always be evaluated at individual model level.

Main applications

The exact application depends on the selected DCK 20V MAX tool.

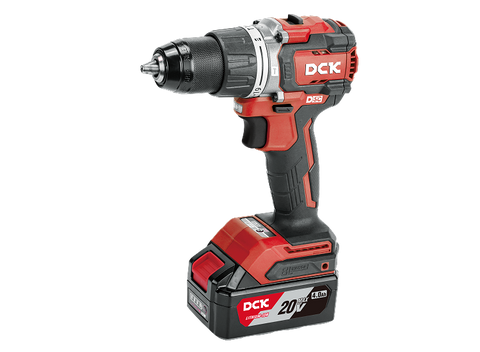

Drilling and screwdriving – drill drivers are suitable for applications where controlled drilling and fastening are required. Hammer drill/drivers add an impact-drilling function for appropriate masonry-related work.

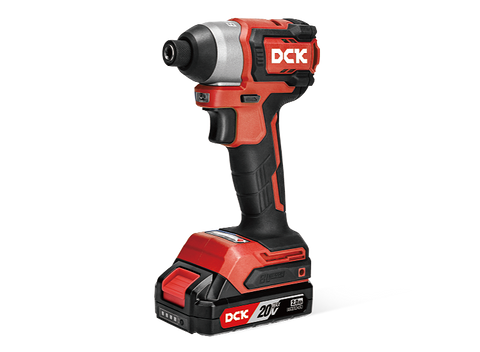

Impact fastening – impact drivers are designed for driving suitable fasteners, while impact wrenches are intended for applications where high fastening and loosening torque is required.

Concrete and masonry work – DCK 20V MAX rotary hammers provide a dedicated option for drilling and, depending on the model, hammering applications.

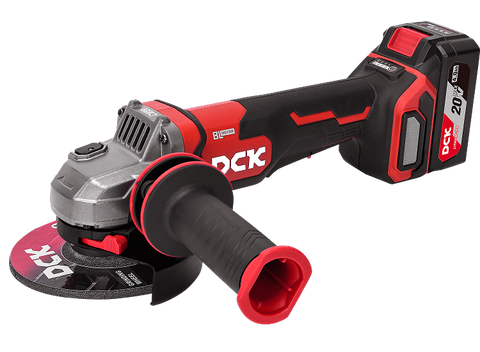

Grinding and polishing – cordless angle grinders and polishers provide portable solutions for appropriate metalworking, construction and finishing tasks.

Cleaning, blowing and dust management – the platform also extends beyond conventional drilling and cutting tools into blowers, vacuum-cleaning products and dust-extraction equipment.

Because the individual tools differ substantially, not every DCK 20V MAX model is suitable for every material or task.

Brushless DCK 20V MAX tools

Many tools in the current DCK 20V MAX catalogue are specifically identified by the manufacturer as brushless. For example, DCK lists brushless drill/hammer drills, impact drivers, impact wrenches and rotary hammers within its current 20V MAX range.

Brushless motor construction should nevertheless be verified for the exact model being purchased. It should not be assumed that every product carrying the DCK 20V MAX designation uses the same motor technology.

How to choose the right DCK 20V MAX tool

Start with the application. A drill driver, impact wrench and rotary hammer can all belong to the same 20V MAX system while being designed for fundamentally different work. Choose the required tool type before comparing maximum specification figures.

Compare torque where it matters. Torque is particularly relevant when selecting drill/drivers, impact drivers and impact wrenches. Higher torque can be useful for demanding fastening work, but it does not automatically make one tool the correct choice for every application.

Check drilling or cutting capacity. For drills and rotary hammers, compare the manufacturer’s stated maximum capacities for the materials you intend to work with. For saws, grinders and other cutting tools, accessory size and working capacity become more relevant.

Consider speed and impact settings. Multiple speed or operating modes can make a tool more adaptable to different applications. Check what controls the specific model provides and what each setting is designed to do.

Compare tool weight. Battery-powered tools are carried as a complete tool-plus-battery system. Tool weight and battery size therefore both affect balance and comfort, particularly during repeated or overhead use.

Choose the battery capacity according to the work. DCK offers several 20V MAX capacities rather than one universal battery size. Consider required runtime together with handling and weight.

Check the package type. Many DCK models are available in different configurations. Some packages contain batteries and a charger, while Type Z versions shown on several official product pages are supplied as tool-only configurations without the battery packs listed in the corresponding kit versions. Exact contents must be verified for the product being ordered.

Important differences between DCK 20V MAX models

Tools within the same 20V MAX platform can vary considerably.

For drilling and fastening products, relevant differences can include:

• maximum torque;
• chuck or drive size;
• no-load speed;
• impact frequency;
• drilling capacity;
• number of torque or operating settings;
• tool weight;
• batteries included in the package.

For grinders and cutting equipment, useful comparison points can instead include:

• disc, blade or other accessory dimensions;
• working speed;
• cutting or grinding capacity;
• tool size and weight;
• accessory compatibility.

This is why the 20V MAX designation should be understood primarily as the cordless platform, not as a single performance class shared by every tool.

Verified examples from the DCK 20V MAX range

The DCK KDJZ20160i cordless brushless hammer drill/drill driver illustrates the higher-output end of the drilling range. DCK specifies this particular model with up to 160 N·m maximum torque, a 13 mm chuck, two speed ranges and maximum drilling diameters of 13 mm in steel, 16 mm in brick wall and 65 mm in wood. These specifications apply specifically to KDJZ20160i and not to every DCK drill.

The DCK KDPB358 cordless brushless impact wrench is another example. The manufacturer specifies a 12.7 mm (1/2") square drive, 358 N·m maximum fastening torque and 500 N·m nut-busting torque for this model. DCK offers it in different package configurations, including battery kits and a Type Z tool-only version.

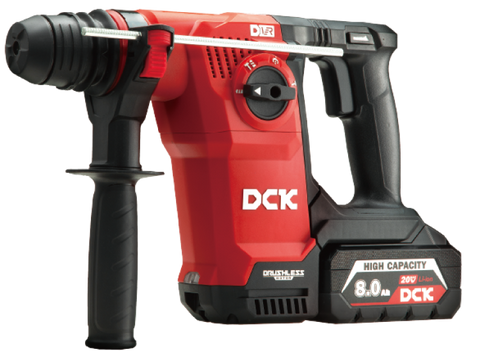

For concrete drilling, the DCK KDZC04-24 cordless brushless rotary hammer is specified with 2.8 J impact energy and a maximum drilling capacity of 24 mm in concrete, 13 mm in steel and 28 mm in wood. It also has three operating modes: drilling, rotary hammering and demolition. These are model-specific specifications.

Frequently Asked Questions (FAQ)

What is DCK Tools 20V MAX?

DCK 20V MAX is DCK’s cordless power tool and battery platform. It covers multiple tool categories and uses 20V MAX lithium-ion batteries available in capacities from 2.0Ah to 12.0Ah.

What types of tools are available in the DCK 20V MAX range?

The official range includes drilling and fastening tools, impact wrenches, rotary hammers, angle grinders, polishers, blowers, cleaning and dust-extraction equipment, combo kits and other cordless products.

What DCK 20V MAX battery capacities are available?

DCK states that its 20V MAX platform covers battery capacities from 2.0Ah to 12.0Ah.

Should I always choose the largest DCK battery?

Not necessarily. Higher capacity can be useful where longer operating time is important, while a smaller battery may help reduce the overall weight of the tool. The appropriate choice depends on the machine and working conditions.

Do all DCK 20V MAX tools include a battery and charger?

No. Official DCK product pages show different package types, including complete battery kits and tool-only versions. Always check the contents of the specific product before ordering.

Are all DCK 20V MAX tools brushless?

Many current models are explicitly identified as brushless, but this should be checked for each individual product. The 20V MAX platform designation itself does not confirm the motor type.

What is the difference between an impact driver and an impact wrench?

They are different fastening tools with different accessory interfaces and typical applications. Impact drivers are commonly used with driver accessories and screws, while impact wrenches use a square drive and are intended for compatible sockets and higher-torque fastening applications. Choose according to the fastener and task rather than torque alone.

Which specifications should I compare when choosing a DCK drill?

Useful criteria include maximum torque, chuck size, speed range, impact function where required, drilling capacity, tool weight and package contents.

Which specifications matter when choosing an impact wrench?

Check square-drive size, fastening torque, nut-busting or breakaway torque where specified, speed and impact settings, suitable bolt sizes, tool weight and included batteries or accessories.

Can I buy only the DCK 20V MAX tool if I already have batteries?

Some DCK tools are available in tool-only configurations. Before ordering, verify that your existing battery is compatible with the exact product and check whether the package contains the accessories you need.

Tricks & Tips

• Choose the platform before expanding your tool collection. A common 20V MAX battery system becomes more useful when several compatible cordless tools are used.
• Compare tools by application, not only by maximum torque. A very high specification is only useful when it matches the task.
• Check the complete model code. Similar tools may be offered with different batteries, chargers and packaging.
• Balance battery capacity and weight. The largest Ah battery is not automatically the most comfortable choice for every handheld tool.
• Check accessories separately. Sockets, drill bits, discs, blades and other consumables need to match the specific tool and application.
• Keep suitable batteries charged before intensive work. A multi-battery setup can reduce interruptions where continuous cordless operation is required.
• Use manufacturer specifications for material limits. Maximum drilling, cutting and accessory dimensions differ between models.
• Read the manual for the exact tool. Operating modes, accessory fitting and maintenance requirements are model-specific.

Safety

DCK 20V MAX tools should be used according to the manufacturer’s instructions and the manual supplied for the specific model. Use appropriate personal protective equipment for the task and make sure batteries, accessories and consumables are suitable for the tool before operation.

Grinding, drilling, impact fastening, concrete work and cutting each involve different hazards. Safety requirements should therefore be determined from the actual tool, accessory, material and working environment rather than from the 20V MAX platform alone.
