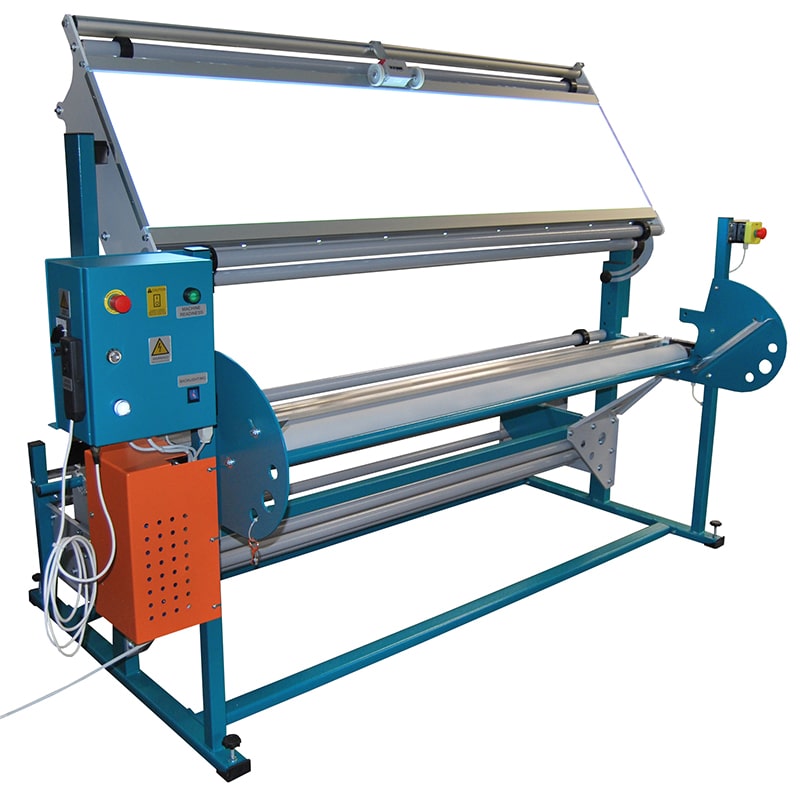

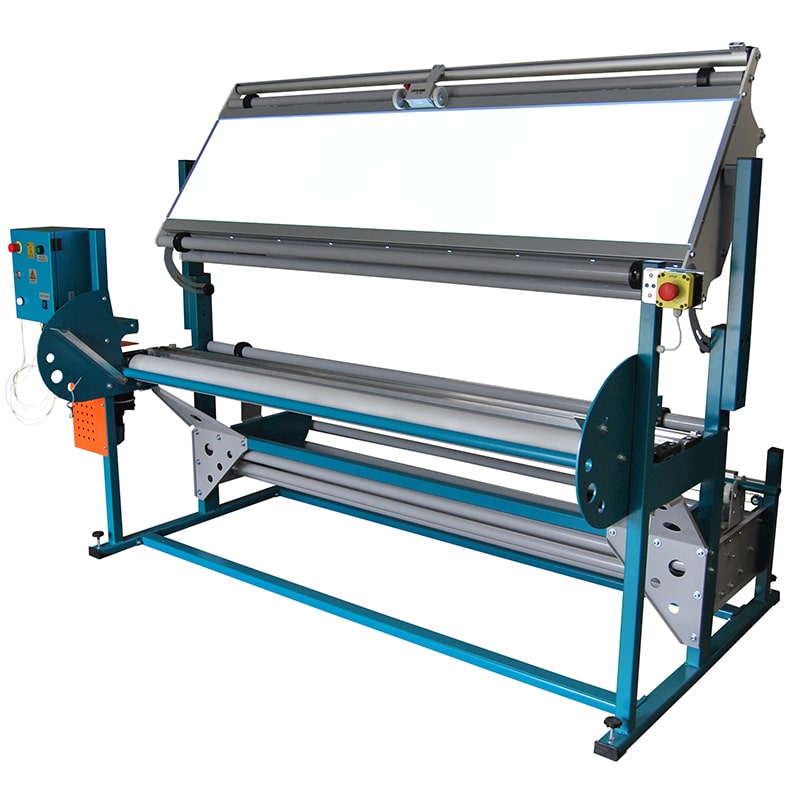

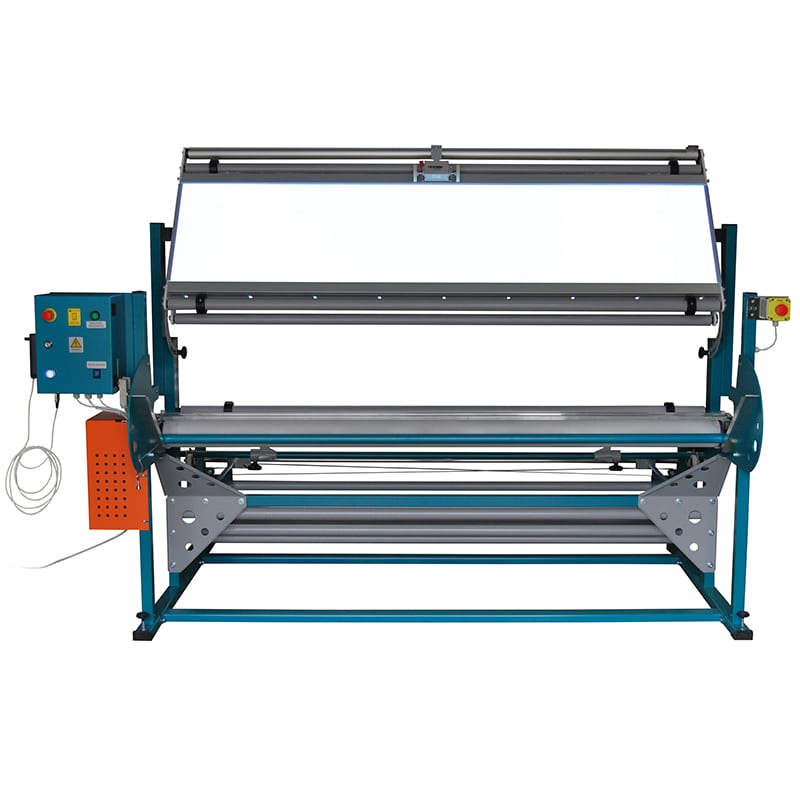

Re-winding control machine with lighting and a more powerful winding device, as well as a length measuring device.
Main features:
- rewinding / checking machines with an illuminated screen ensure fast and simple quality control and fabric length measurement;

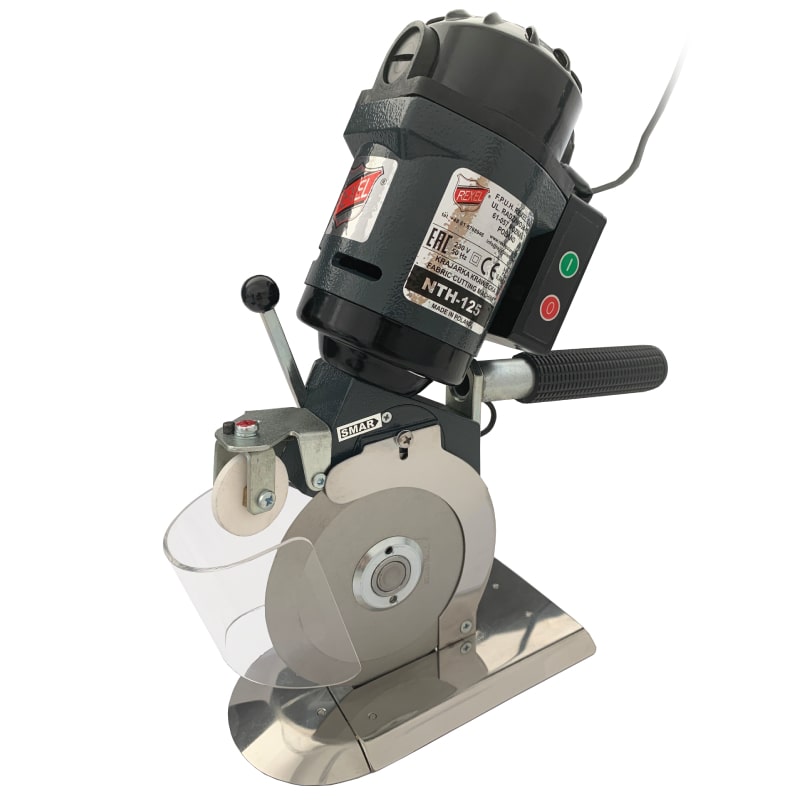

- machines can have a built-in manual (version /R) or semi-automatic (version /A) fabric cutter, to increase productivity at the workplace;
- excellent choice for all textile manufacturers and companies working with any type of fabric;
- high winding speed (50 m/min or 60 m/min);
- mechanical length measurement (yards or meters);
- easy fabric roll mounting;
- frame made from powder coated steel.

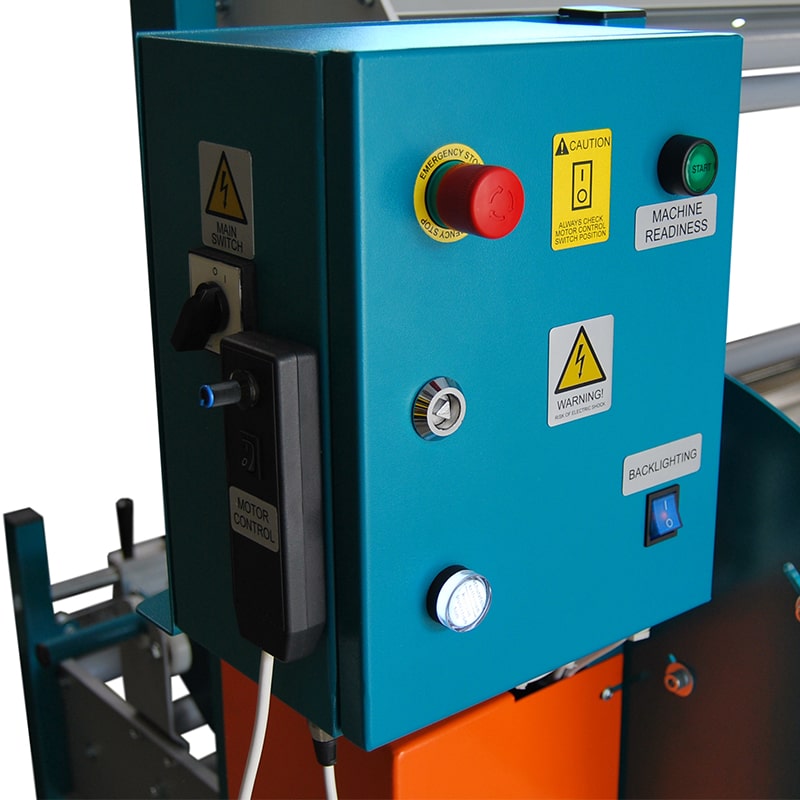

Safety features:
- Sudden machine stop when the emergency stop button is pressed;
- For safety reasons, the machine cannot be restarted after emergency situations unless the operator turns the machine back on (protection against accidental self-starting);
- The machine is protected using special safety relays made by "Omron".
