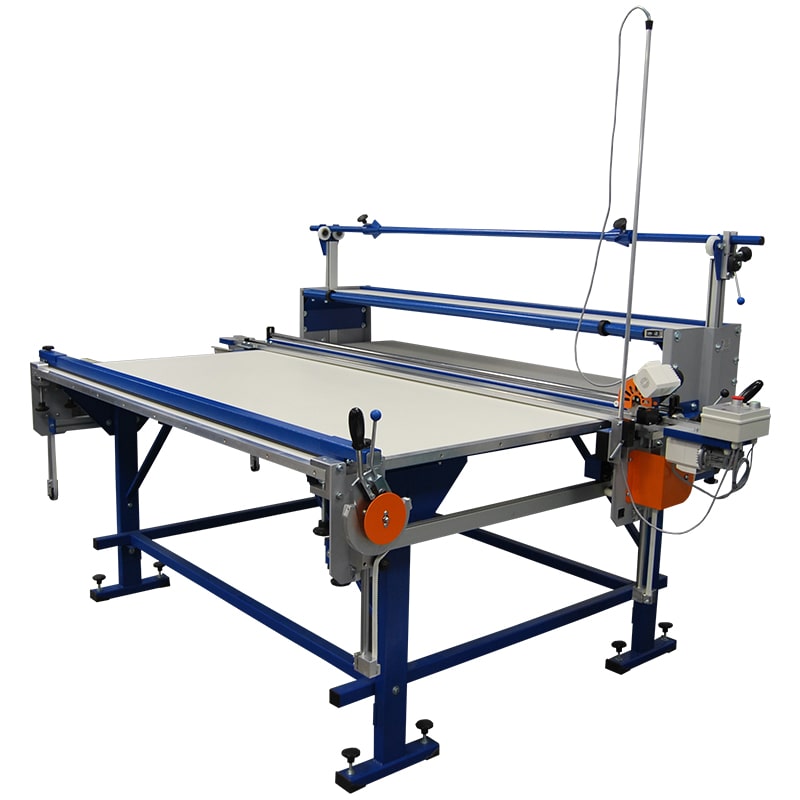

Rexel UL-3 - Handheld Fabric Cutting Device

Main features:

• designed for manual fabric spreading and preparation for vertical or horizontal cutting;

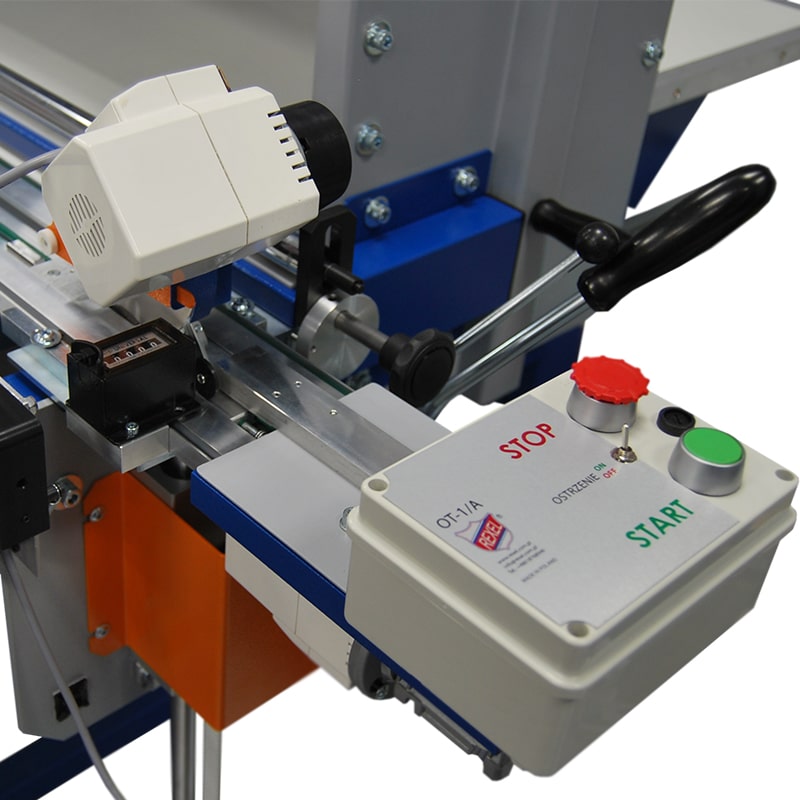

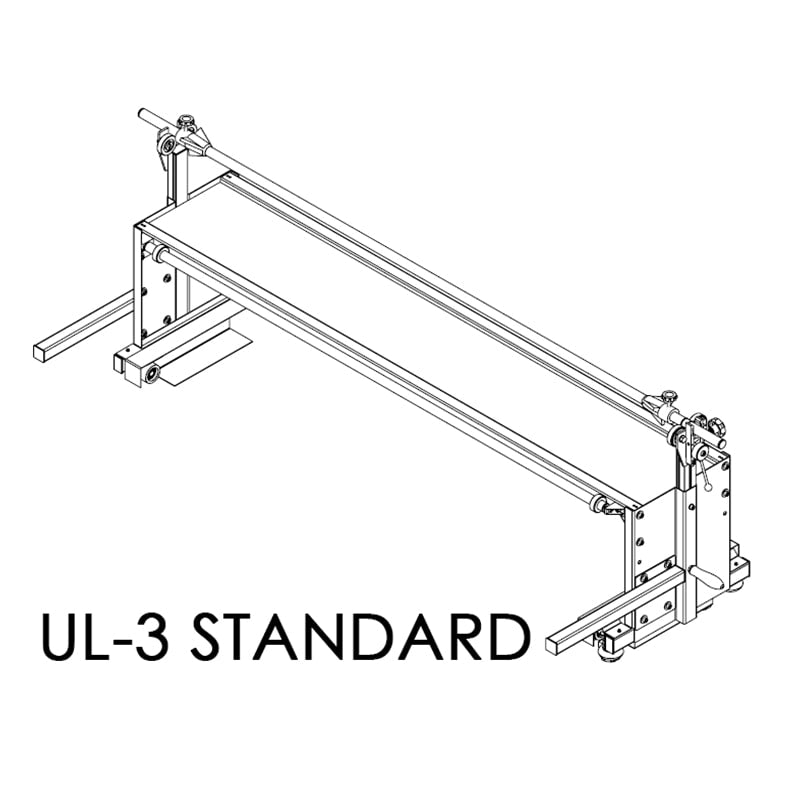

• the device includes: SK-3 cutting table, UL-3 spreading roller, LD-2 fabric clamp, OT-1/A fabric cutter, and mechanical cutting gauge;
• rotatable spreading roller (optional);
• power cable on wire rope (not mandatory);
• table with air cushion (optional UL-3/AIR);
• standard width: 1.83 m or 2.07 m;
• standard lengths: 2.8 m, 3.9 m, 5 m, 6.1 m, 7.2 m, 8.3 m, 9.4 m, 10.5 m, 11.6 m, 12.7 m, 13.8 m, 14.9 m and 16 m. Note: UL-3 spreading roller takes up 80 cm of SK-3 table.
• standard roll weight: up to 60 kg
• standard roll diameter: up to 50 cm

Options for an additional fee:

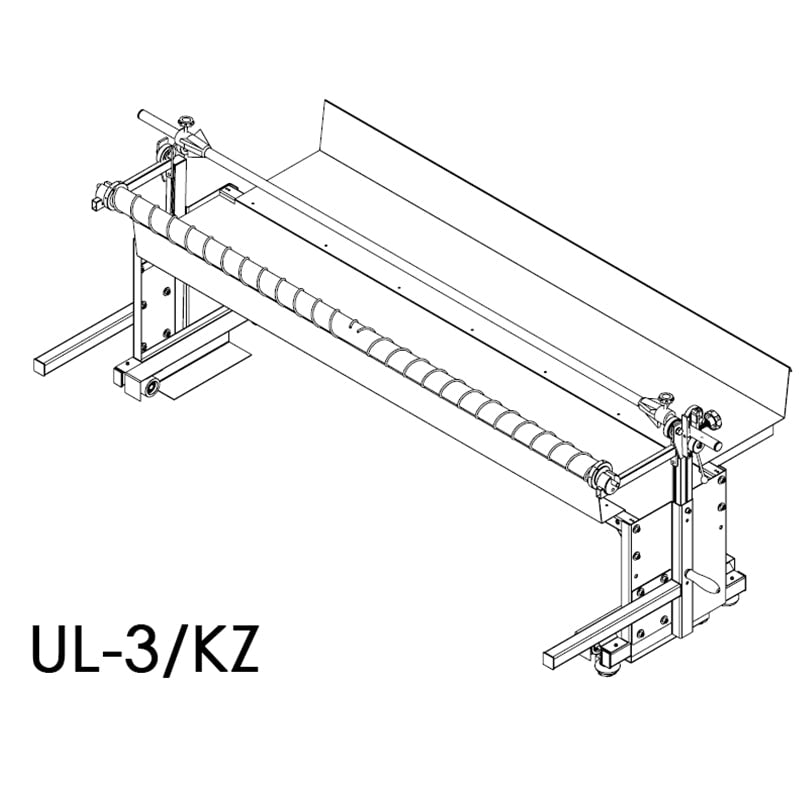

• spreading roller with cradle / shelf for spreading fabric from a roll and grease removal roller UL-3/KZ;

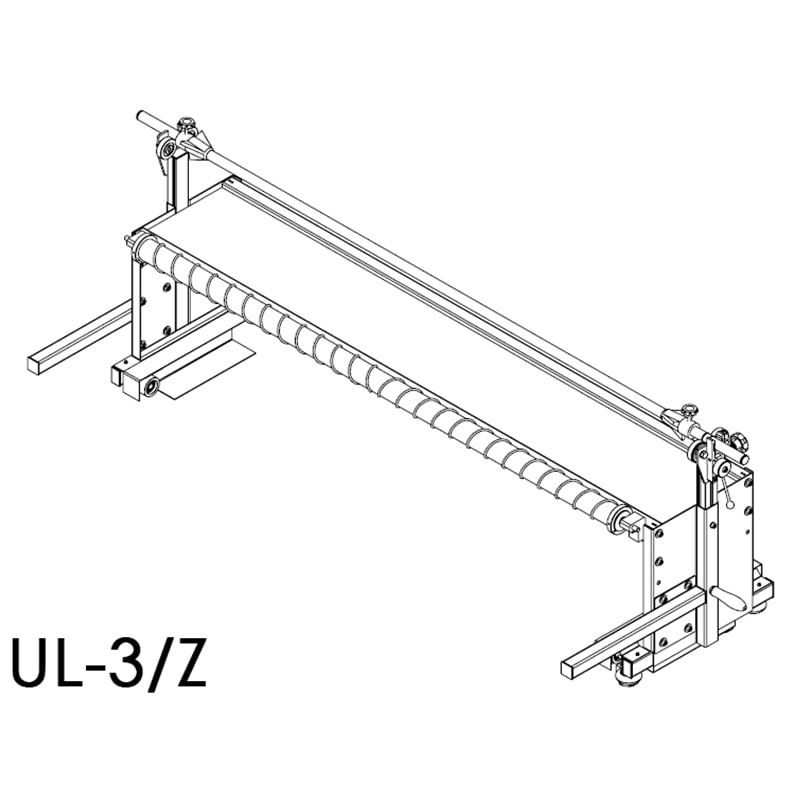

• spreading roller with grease removal roller UL-3/Z;

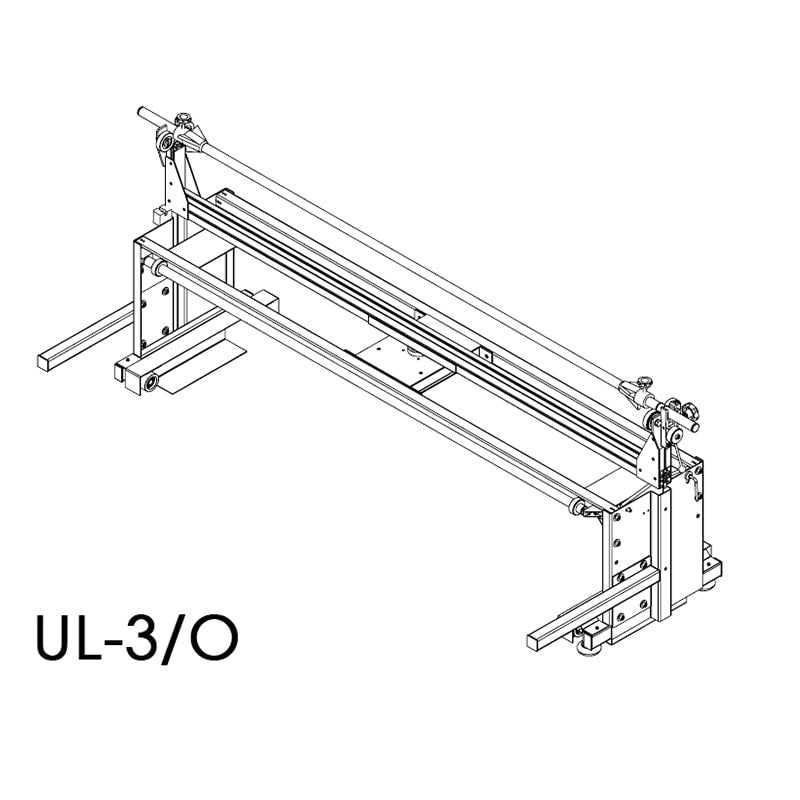

• rotatable spreading roller UL-3/O (not compatible with UL-3/KZ);

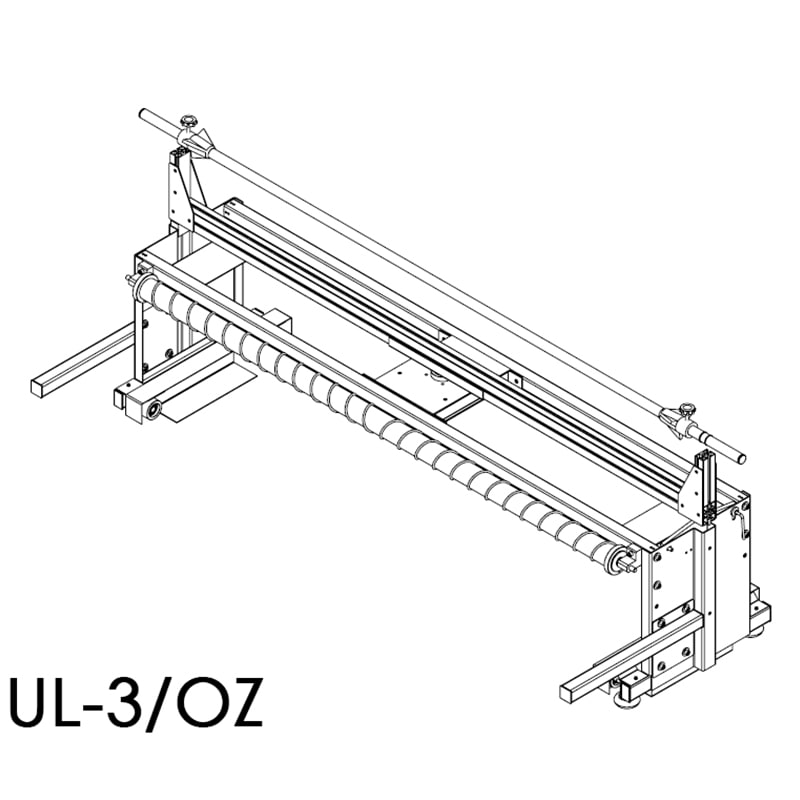

• rotatable spreading roller + grease removal roller UL-3/OZ (not compatible with UL-3/KZ);
• fabric end cutting wire extension system;
• lower shelf for holding the roll, shelf thickness 18 mm, finish - white PVC;
• additional rod for thin cardboard cores ½ inch;
• air blowing: for each 2.5 m length section.
