LIGHT BOY - LED Balloon Lighting Tower with Cart, 3.2 m

The LIGHT BOY B8CA is a portable LED balloon lighting tower with an industrial-grade cart for easy transportation and flexible operation. It is designed for temporary professional lighting where mobility, compact storage and stable setup are important.

The unit uses an 800 W LED balloon lighting system and provides glare-free illumination for work areas. The telescopic aluminum mast is operated by hand and includes a 3-stage air-assisted mast assembly. The cart has a one-step foot brake and provides a platform for securing a selected portable generator for off-site lighting applications.

The B8CA has 3-stage dimming control, allowing the light output to be adjusted according to the application: 800 W, 600 W, 400 W or OFF. The balloon cover helps protect the balloon structure from dust, while the LED lamp protector is made from durable polycarbonate.

Specification:

• Model: B8CA
• Voltage: AC 90–240 V
• Frequency: 50/60 Hz
• Current: 3.75 A at AC 230 V / 800 W
• Lamp type: LED
• Dimming control: 800 W / 600 W / 400 W
• Total luminous flux: 110,000 / 90,000 / 67,000 lm
• Operating temperature: -10 °C to +40 °C
• Mast: telescopic aluminum mast
• Mast operation: hand operation
• Cart brake: one-step foot brake
• Operation dimensions: 1325 × 1300 × 1870–3200 mm
• Storage size, balloon: 200 × 220 × 690 mm
• Storage size, cart: 1025 × 700 × 845 mm
• Weight, balloon: 10.8 kg
• Weight, cable: 1.4 kg
• Weight, mast: 2.2 kg
• Weight, cart: 37.5 kg
• Total weight: 51.9 kg
• Appropriate generator: 870 W and above

Advantages:

• 800 W LED balloon lighting system
• Glare-free illumination for work areas
• Industrial-grade cart for easier transport
• Platform for securing a selected portable generator
• Telescopic aluminum mast with hand operation
• 3-stage dimming control
• One-step foot brake
• Durable polycarbonate LED lamp protector
• Balloon cover for dust protection

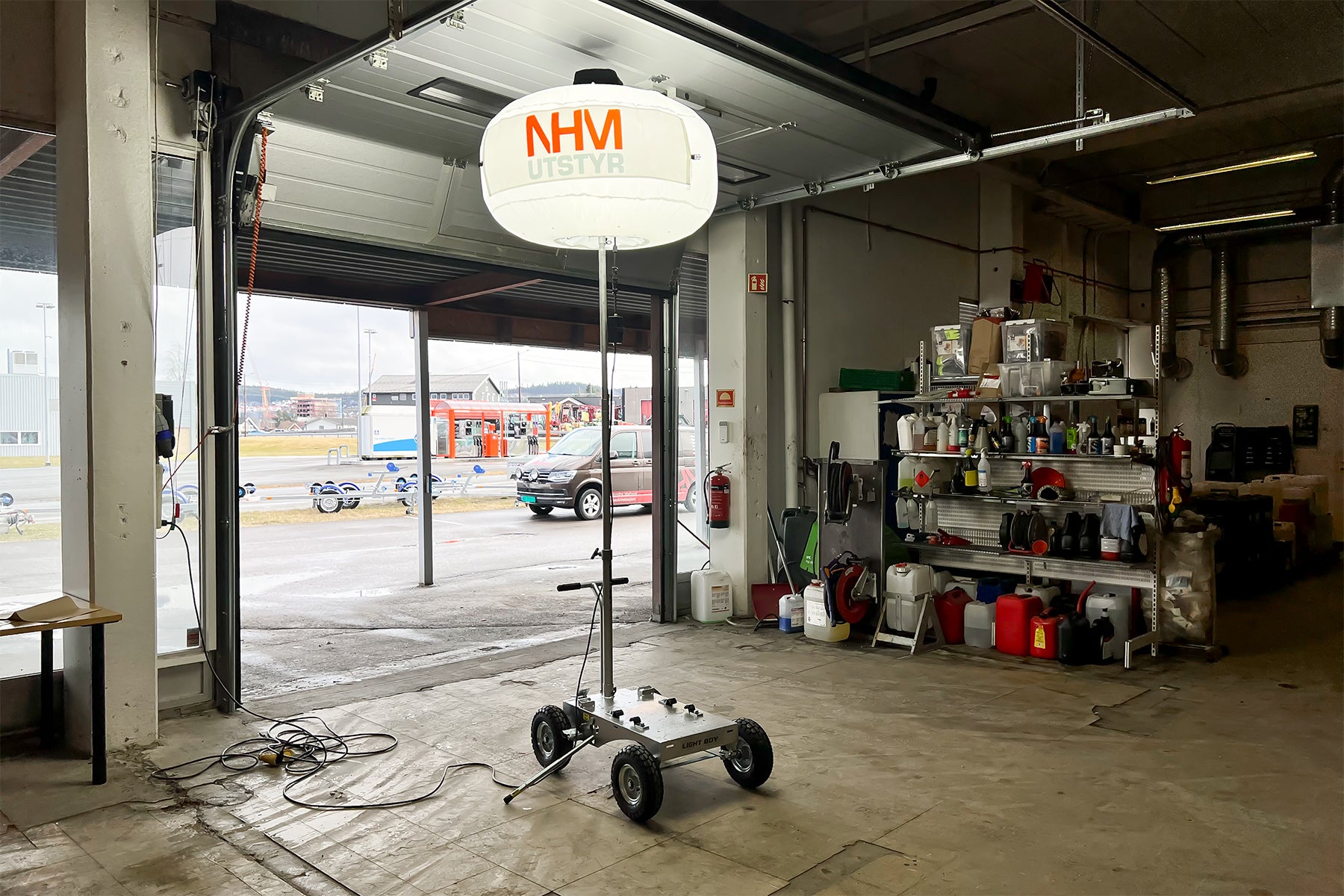

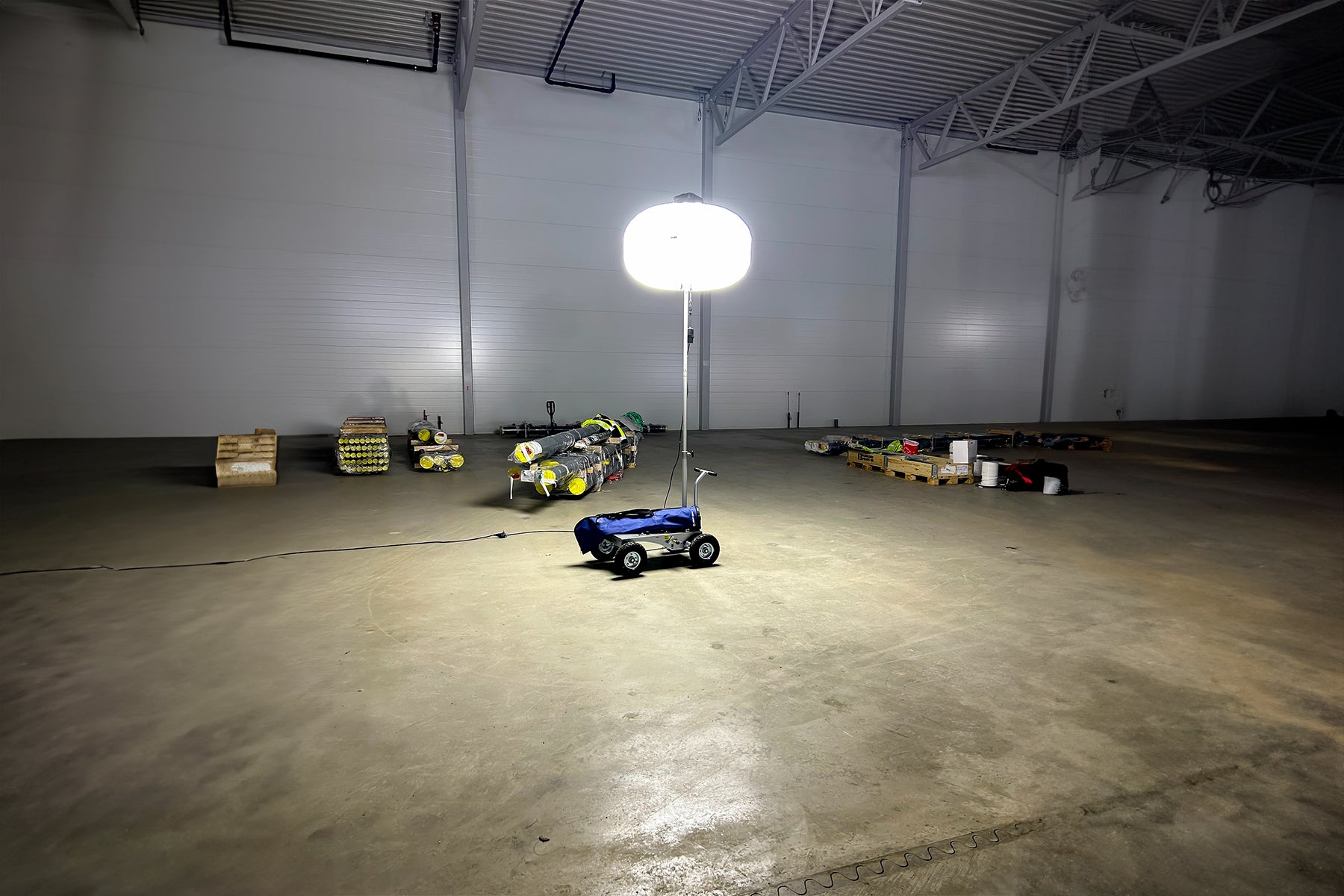

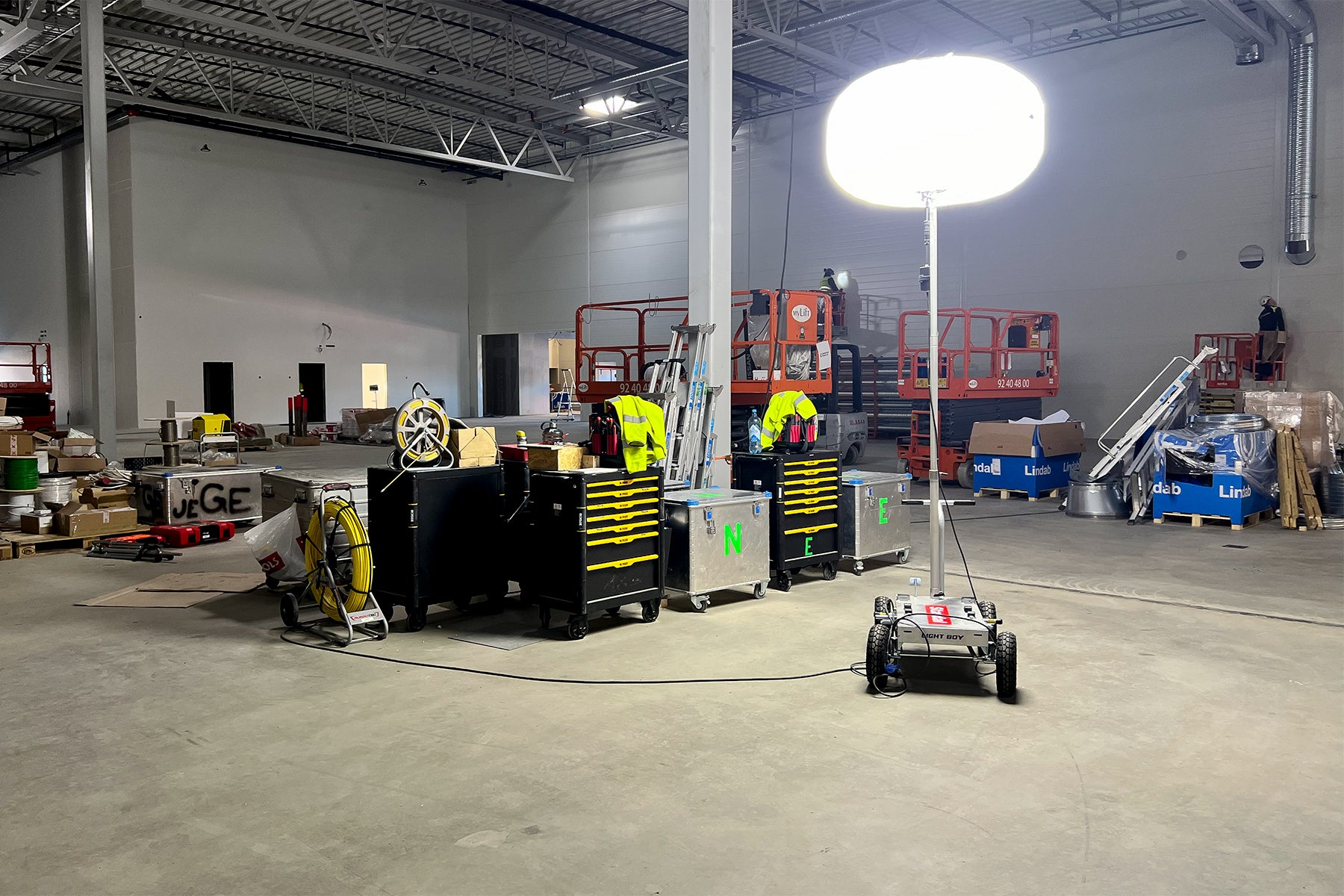

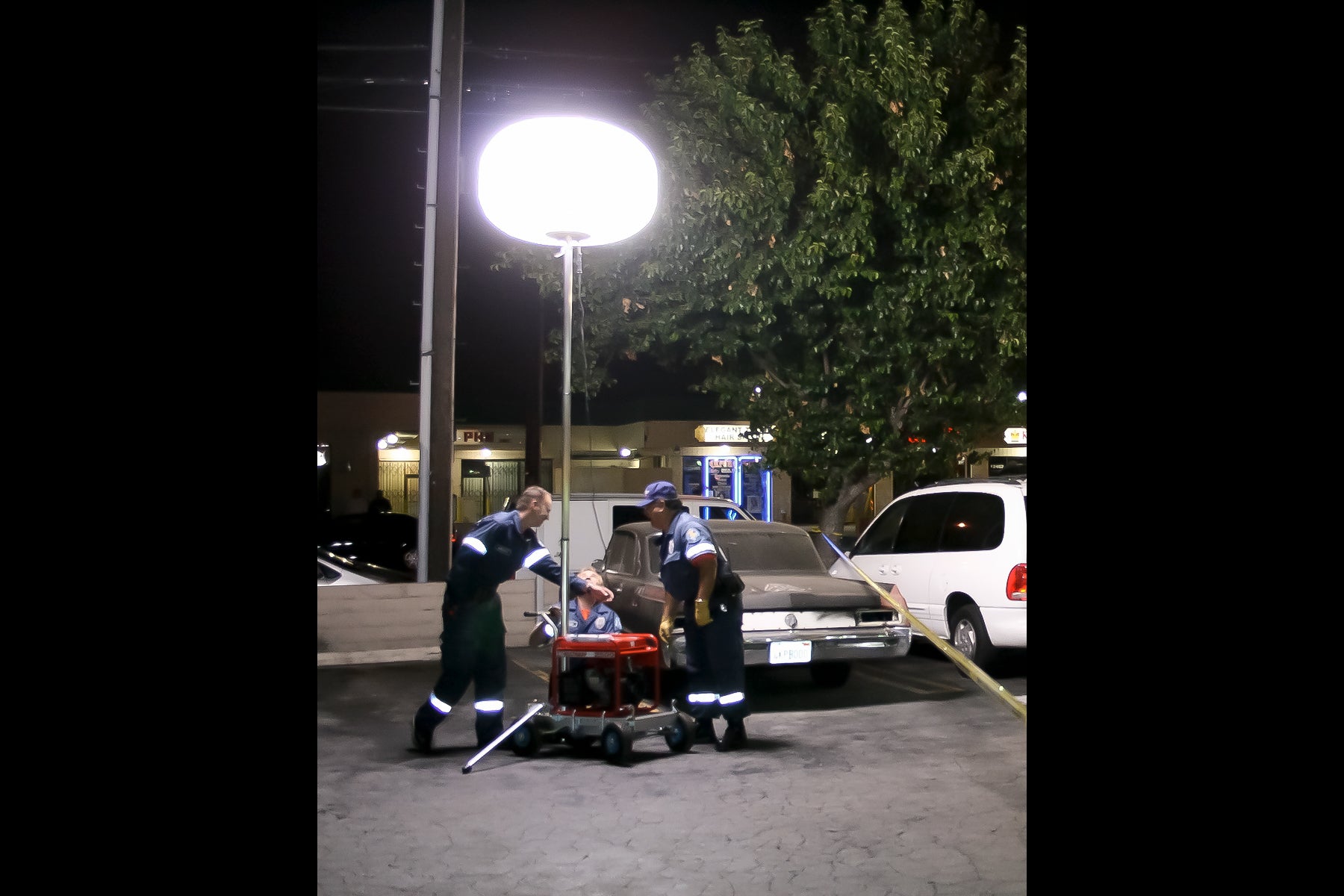

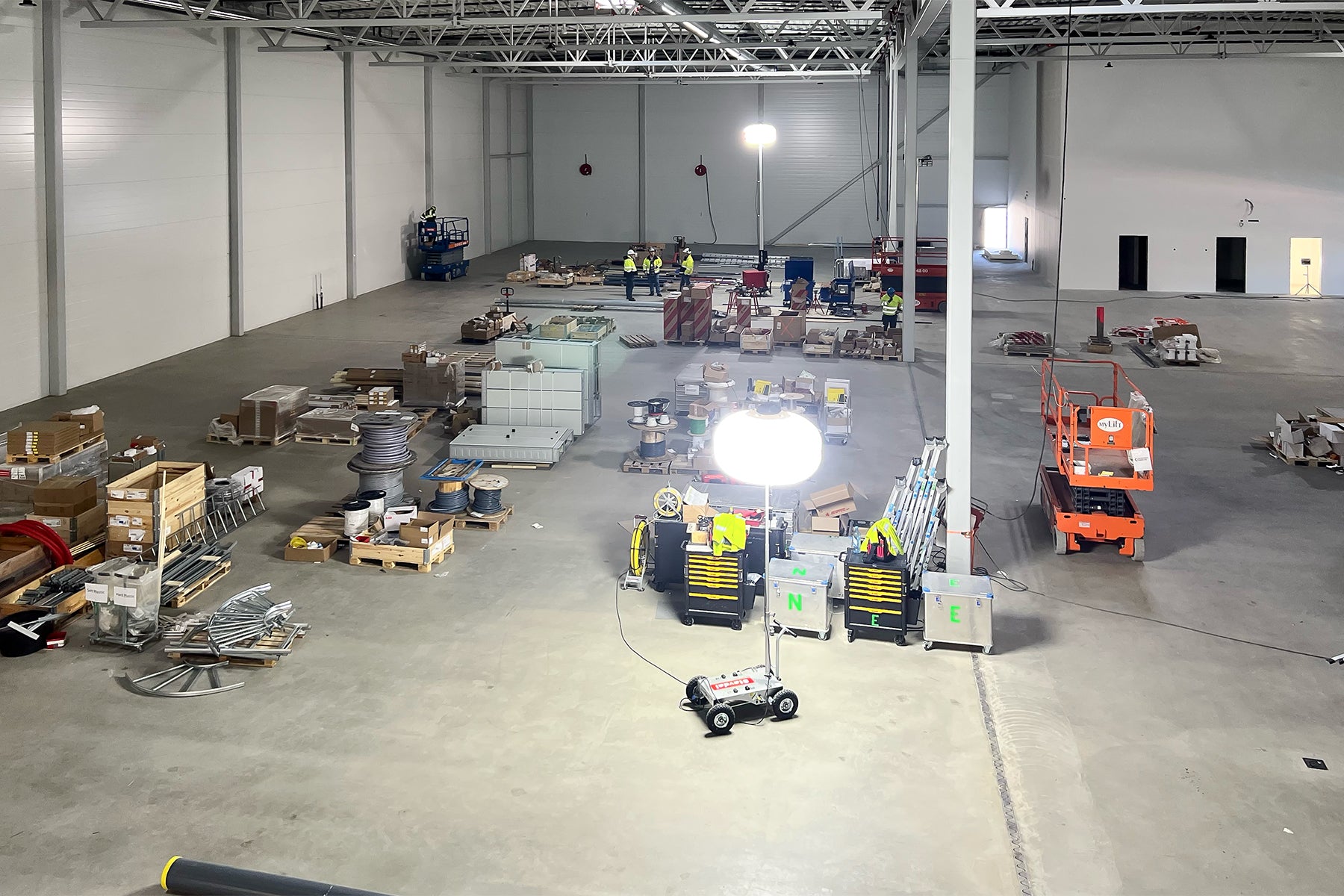

Applications:

• Construction site lighting
• Temporary work area lighting
• Off-site lighting applications
• Mobile professional lighting
• Event lighting
• Emergency and quick response lighting
