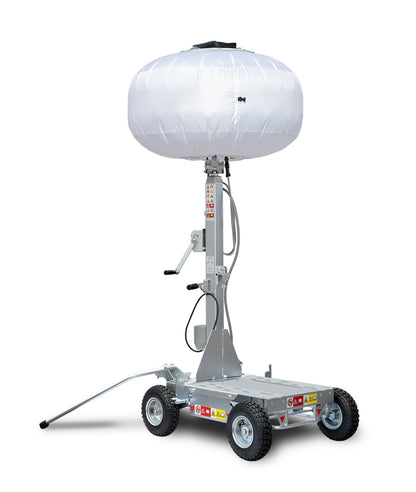

LIGHT BOY - LED Balloon Lighting Tower with Cart, 4.4 m

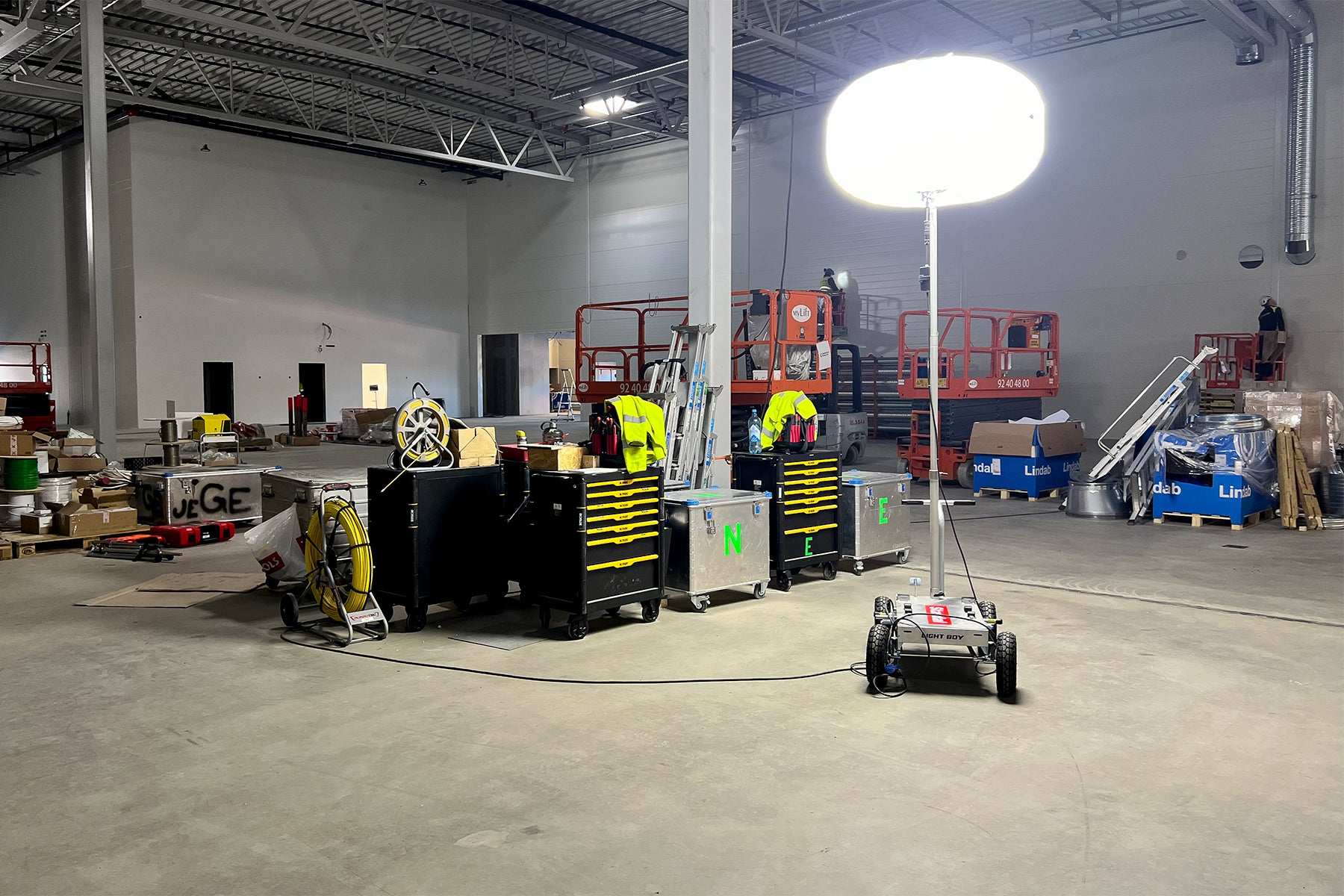

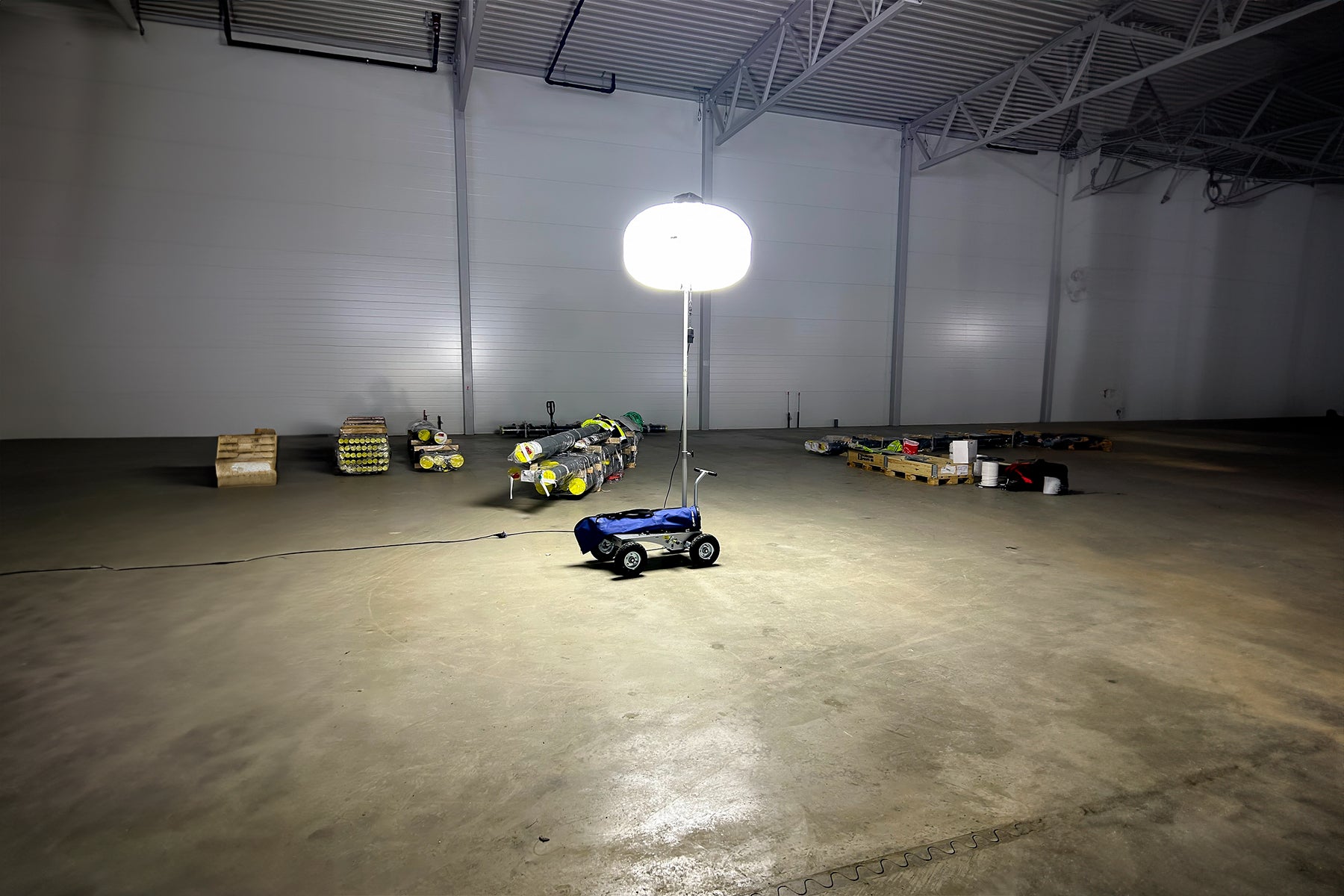

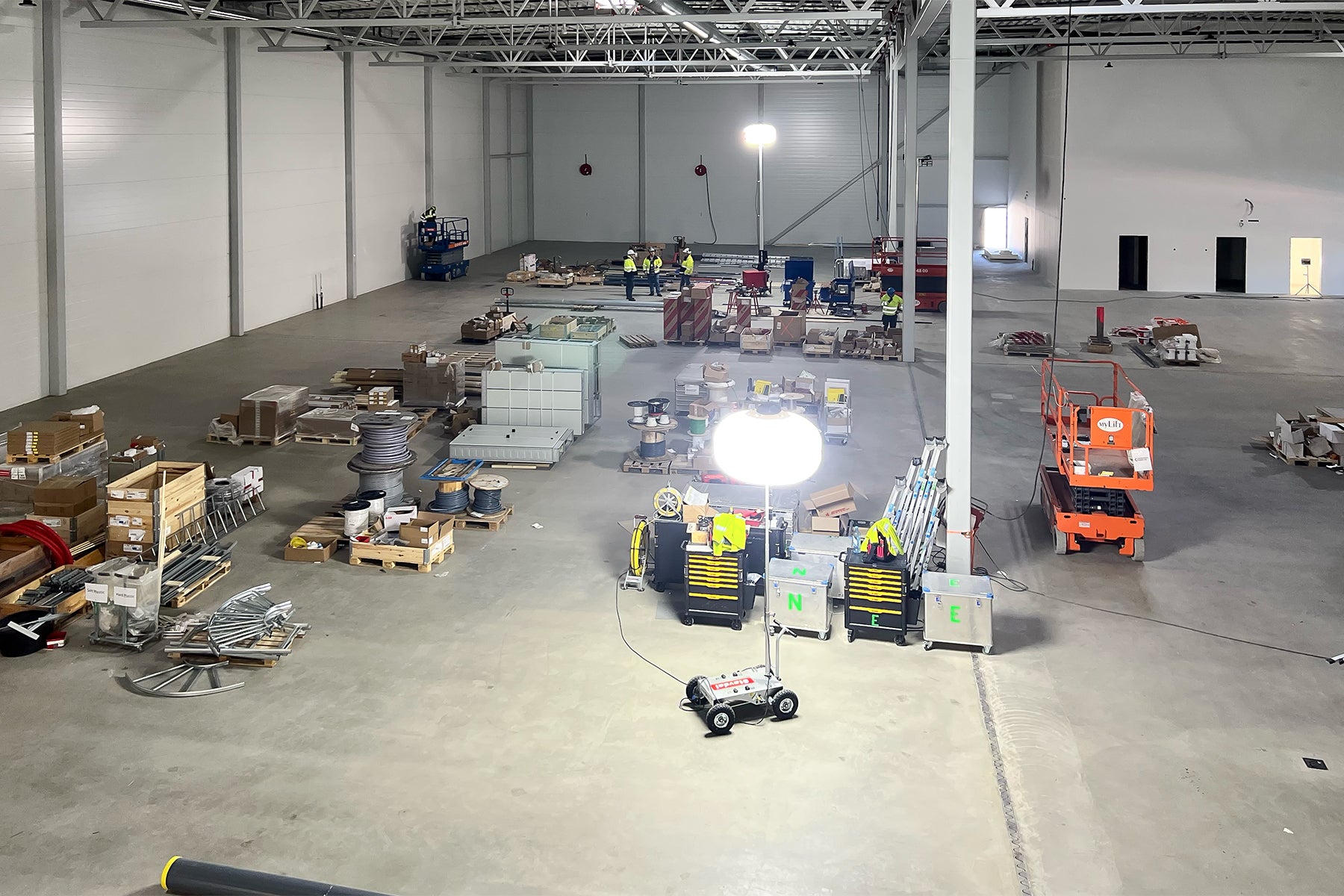

The LIGHT BOY B8CS-CE is a mobile LED balloon lighting tower designed for temporary professional lighting in construction sites, outdoor work areas, roadwork, events and emergency response applications. The balloon lighting system provides soft, evenly distributed illumination and helps reduce glare in the working area.

The unit uses an 800 W LED balloon lamp with 3-stage dimming control. Light output can be adjusted according to the application: 800 W, 600 W or 400 W. The total luminous flux is 110,000 / 90,000 / 67,000 lm depending on the selected dimming level.

The B8CS-CE has a 3-stage telescopic mast operated by manual winch and provides a working height of up to 4.44 m. The lighting system is mounted on a cart with pneumatic tires, stepping brake and rearward deployment outriggers for stable setup. This version is supplied without generator.

Specification:

• Model: B8CS-CE
• Voltage: AC 230 V
• Frequency: 50/60 Hz
• Wattage: 860 W
• Power factor: ≥ 0.96
• Lamp type: LED / Balloon
• Lamp power: 800 W × 1
• Dimming control: 800 W / 600 W / 400 W
• Total luminous flux: 110,000 / 90,000 / 67,000 lm
• Mast type: 3-stage telescopic system
• Mast operation: manual winch
• Tires: 300 mm external diameter pneumatic tires
• Tire pressure: 245–294 kPa
• Brake: stepping brake type
• Outriggers: rearward deployment type
• Operating temperature: -10 °C to +40 °C
• Plug type: CEE 7/7
• Working dimensions: 1550 × 1600 × 2340–4440 mm
• Storage dimensions: 1040 × 800 × 1780 mm
• Maximum projected area: 1.16 m²
• Balloon weight: 10.8 kg
• Cart weight: 105.2 kg
• Total weight: 116 kg
• Required generator capacity: 0.9 kVA or more
• Generator: not included

Advantages:

• 800 W LED balloon lighting system
• Soft, glare-reduced illumination
• 3-stage dimming control
• Total luminous flux up to 110,000 lm
• 3-stage telescopic mast
• Manual winch mast operation
• Mobile cart with pneumatic tires
• Stepping brake for stable positioning
• Rearward deployment outriggers
• Supplied without generator

Applications:

• Construction site lighting
• Temporary outdoor work area lighting
• Roadwork and infrastructure lighting
• Event lighting
• Emergency and quick response lighting
• Mobile professional lighting
