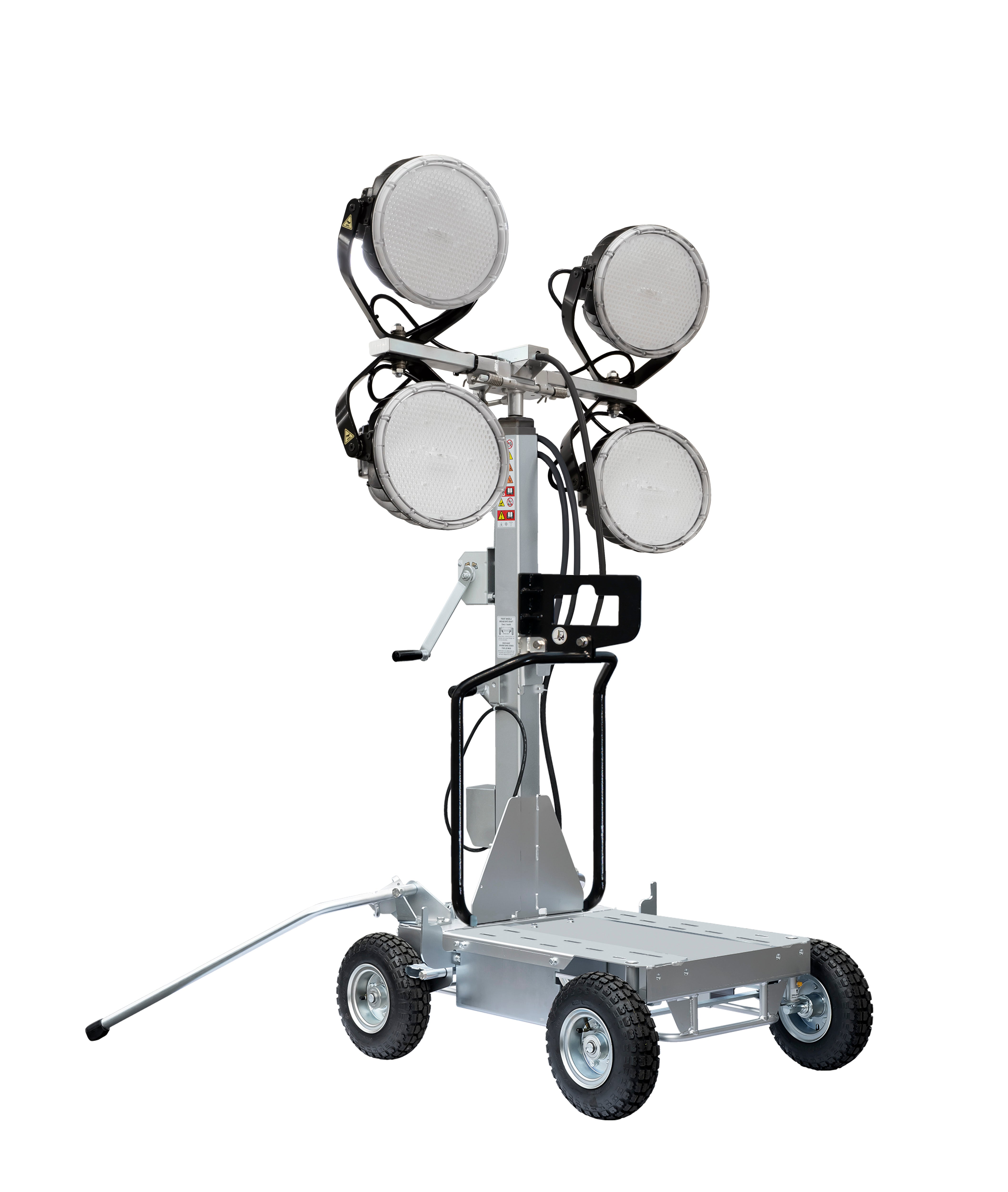

LIGHT BOY – LED Lighting Tower with Cart, 4.1 m

The LIGHT BOY S3X4CS-CE is a mobile LED lighting tower designed for temporary professional lighting in construction sites, outdoor work areas, roadwork, events and emergency response applications. The unit uses four LED spotlights and provides strong area illumination with a total luminous flux of 212,000 lm.

This model has a 3-stage telescopic mast operated by manual winch and provides a working height of up to 4.1 m. The lighting system is mounted on a mobile cart with pneumatic tires, stepping brake and rearward deployment outriggers for stable setup.

The S3X4CS-CE uses 4 × 300 W LED spotlights. The lamp angle can be adjusted to direct the light as needed for the working area. This version is supplied without generator.

Specification:

• Model: S3X4CS-CE
• Voltage: AC 230 V
• Frequency: 50/60 Hz
• Wattage: 1352 W
• Power factor: ≥ 0.96
• Lamp type: LED / Spot
• Lamp power: 300 W × 4
• Total luminous flux: 212,000 lm
• Mast type: 3-stage telescopic system
• Mast operation: manual winch
• Tires: 300 mm external diameter pneumatic tires
• Tire pressure: 245–294 kPa
• Brake: stepping brake type
• Outriggers: rearward deployment type
• Operating temperature: -10 °C to +40 °C
• Working dimensions: 1550 × 1600 × 2015–4115 mm
• Storage dimensions: 1060 × 1040 × 1710 mm
• Maximum projected area: 1.26 m²
• Total weight: 139 kg
• Required generator capacity: 1.5 kVA or more
• Generator: not included

Advantages:

• 4 × 300 W LED spotlight system
• Total luminous flux of 212,000 lm
• Strong area illumination for professional work zones
• 3-stage telescopic mast
• Manual winch mast operation
• Mobile cart with pneumatic tires
• Stepping brake for stable positioning
• Rearward deployment outriggers
• Supplied without generator

Applications:

• Construction site lighting

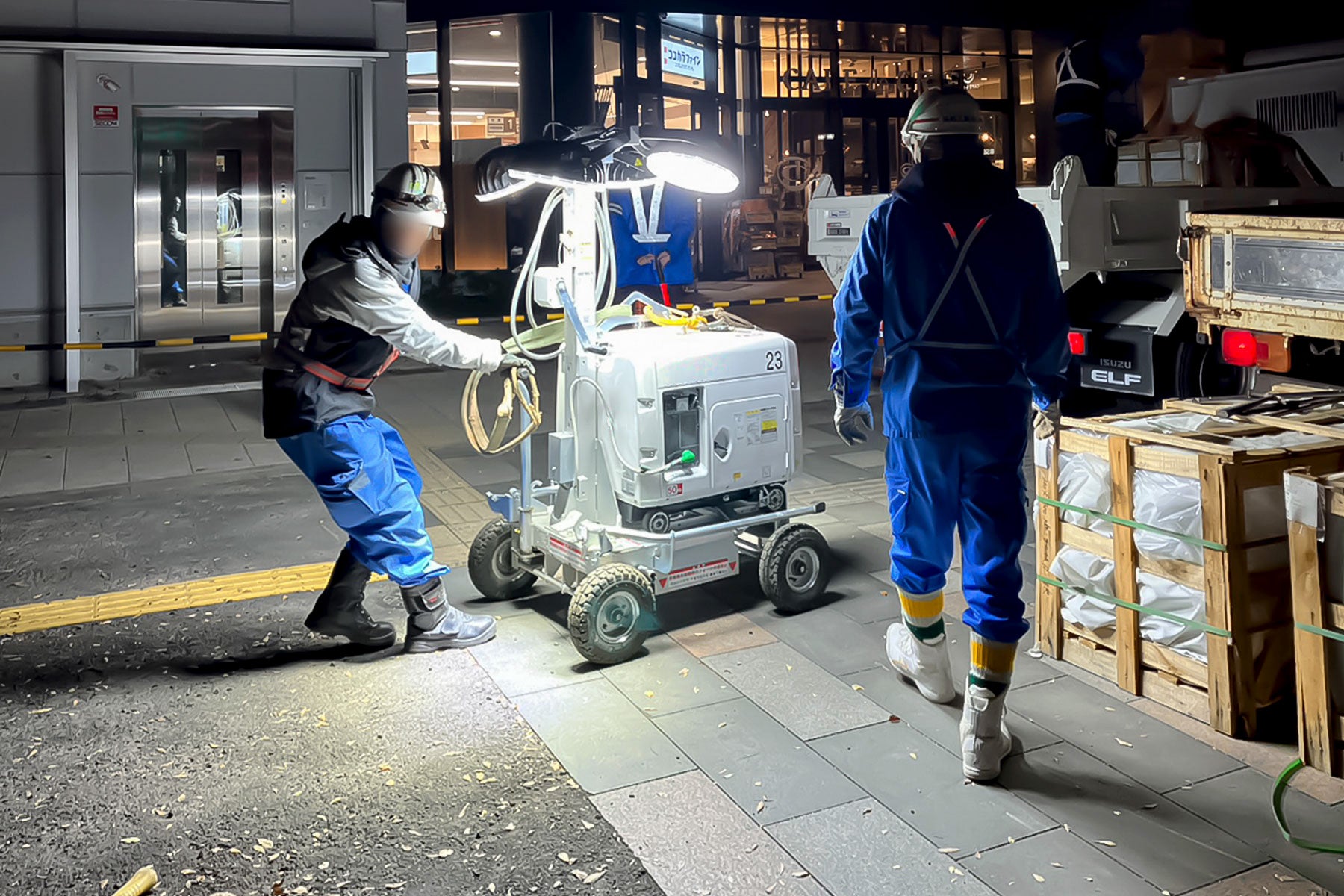

• Temporary outdoor work area lighting

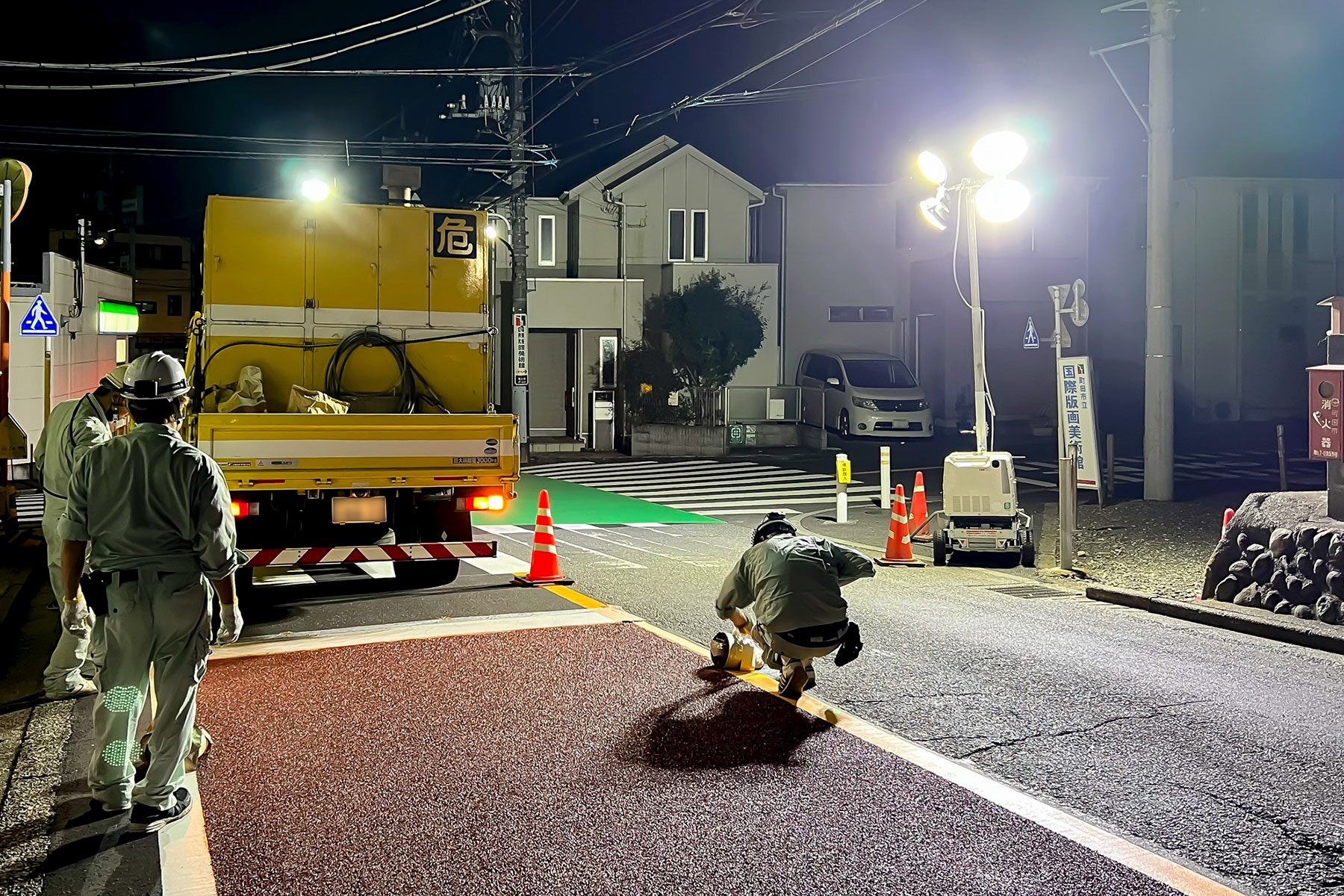

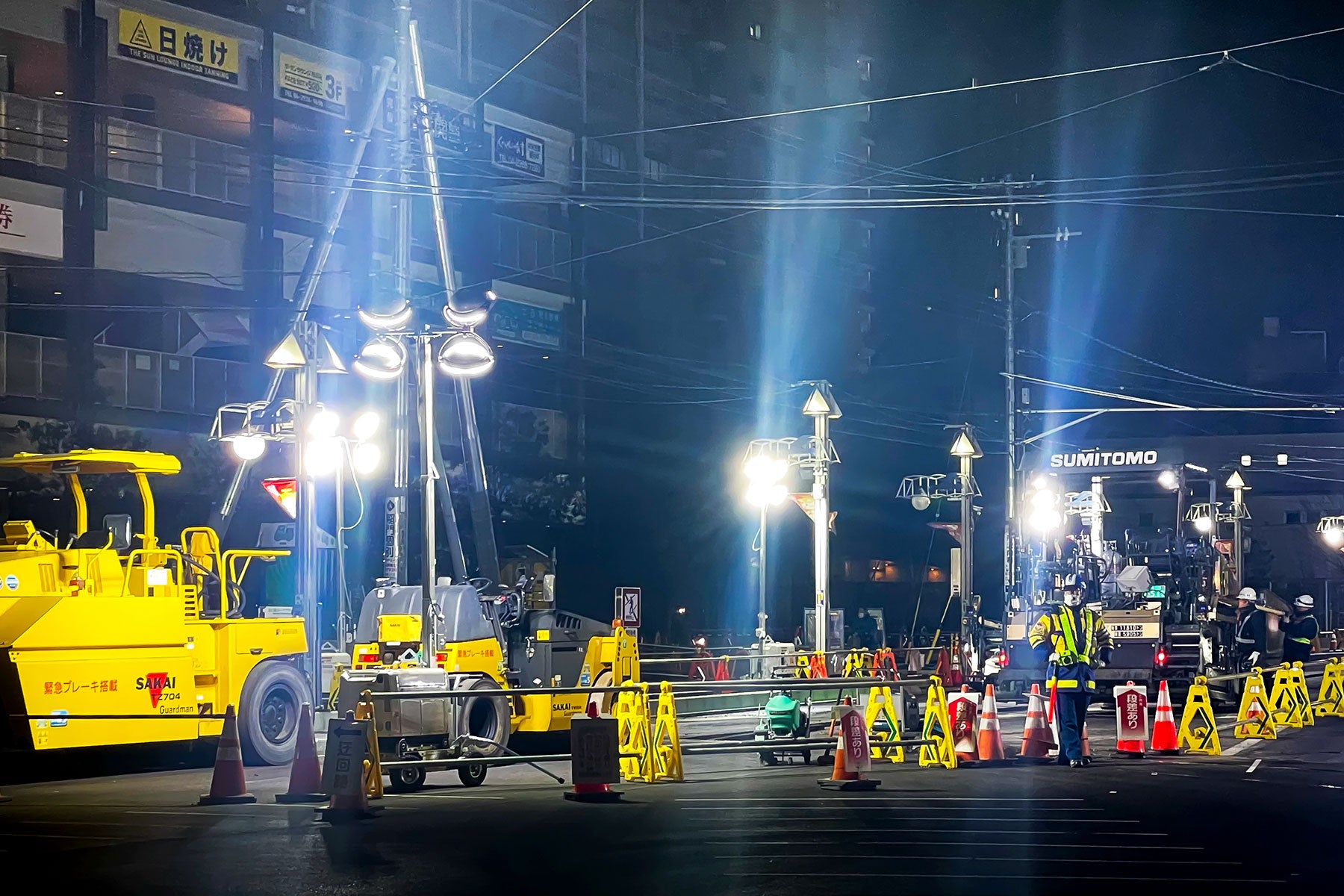

• Roadwork and infrastructure lighting
• Event lighting
• Emergency and quick response lighting
• Mobile professional lighting
